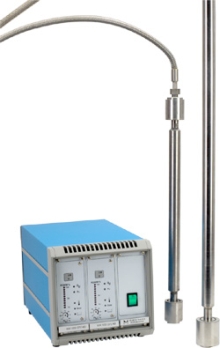

Push Pull Transducer
| Martin Walter Push-Pull™ Transducers. Titanium or stainless steel rod construction throughout offers up to three times the life of ordinary transducers and near-perfect transmission of sound. Easy to install into existing tanks.
Features and Benefits |
- All-titanium or Stainless Steel construction
- 3 times the life of traditional transducers
- Near-perfect transmission of sound
- Ideal retrofit for large tanks
- Easy installation (see below)
- Use with a wide range of cleaning media
|
|
| Push-Pull |
Generator
Model |
Overall
Length
in. (A) |
Radiating
Length
in. (B) |
Radiating
Diameter
in. (C) |
Overall
Diameter
in. (D) |
| 25 KHZ |
| 06.25.198 |
MW
600 PMI 25 |
17.24 |
7.80 |
2 |
2.75 |
| 06.25.297 |
MW
600 PMI 25 |
21.14 |
11.69 |
2 |
2.75 |
| 10.25.297 |
MW
1000 PMI 25 |
21.14 |
11.69 |
2 |
2.75 |
| 10.25.495 |
MW
1000 PMI 25 |
28.94 |
19.49 |
2 |
2.75 |
| 15.25.495 |
MW
1500 PMI 25 |
28.94 |
19.49 |
2 |
2.75 |
| 15.25.693 |
MW
1500 PMI 25 |
36.73 |
27.28 |
2 |
2.75 |
| 15.25.891 |
MW
1500 PMI 25 |
44.53 |
35.08 |
2 |
2.75 |
| 20.25.891 |
MW
2000 PMI 25 |
44.53 |
35.08 |
2 |
2.75 |
| 20.25.1089 |
MW
2000 PMI 25 |
52.32 |
42.87 |
2 |
2.75 |
| 20.25.1287 |
MW
2000 PMI 25 |
60.12 |
50.67 |
2 |
2.75 |
| 20.25.1485 |
MW
2000 PMI 25 |
67.91 |
58.46 |
2 |
2.75 |
| 30 KHZ |
| 06.30.240 |
MW
600 PMI |
16.54 |
9.45 |
1.18 |
2.17 |
| 06.30.320 |
MW
600 PMI |
19.69 |
12.60 |
1.18 |
2.17 |
| 10.30.400 |
MW
1000 PMI |
22.83 |
15.75 |
1.18 |
2.17 |
| 10.30.480 |
MW
1000 PMI |
25.99 |
18.90 |
1.18 |
2.17 |
| 10.30.560 |
MW
1000 PMI |
29.13 |
22.05 |
1.18 |
2.17 |
| 15.30.640 |
MW
1500 PMI |
32.28 |
25.20 |
1.18 |
2.17 |
| 15.30.720 |
MW
1500 PMI |
35.43 |
28.35 |
1.18 |
2.17 |
| 40 KHZ |
| 03.40.122 |
MW
300 PMI 40 |
10.91 |
4.72 |
1.18 |
2 |
| 05.40.183 |
MW
500 PMI 40 |
13.31 |
7.20 |
1.18 |
2 |
| 07.40.302 |
MW
750 PMI 40 |
17.99 |
11.89 |
1.18 |
2 |
| 10.40.427 |
MW
1000 PMI 40 |
22.91 |
16.81 |
1.18 |
2 |
| 45 KHZ |
| 05.45.255 |
MW
500 PMI |
16.14 |
10.04 |
1.18 |
1.18 |
| 05.45.365 |
MW
500 PMI |
20.47 |
14.37 |
1.18 |
1.18 |
| 10.45.417 |
MW
1000 PMI |
22.52 |
16.42 |
1.18 |
1.18 |
|
|
| |
|
|
| |
|
 |
Push Pull Transducer PP 05.45.365 |
|
|
